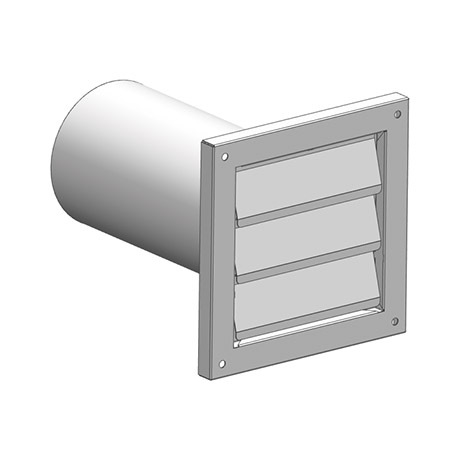

Wall Louver Vent
| Steel Materials | ASTM A653 0.02", Min. 27ga, Fy=Min. 50 Ksi |
| Steel Mesh | Carbon Steel 0.12x0.12” |
| Surface | Zinc Galvanize |
| Size | 4" |

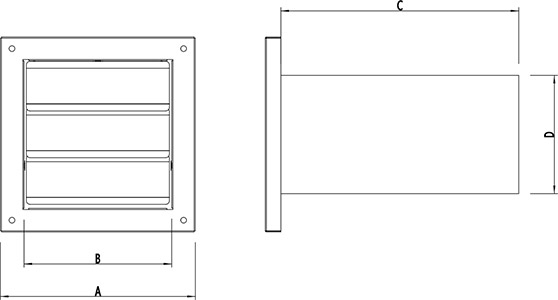

| Size(in) | A | B | C | D |
|---|---|---|---|---|
| 4 | 6-5/8 x 6-5/8 | 5 | 8-1/8 | 4 |

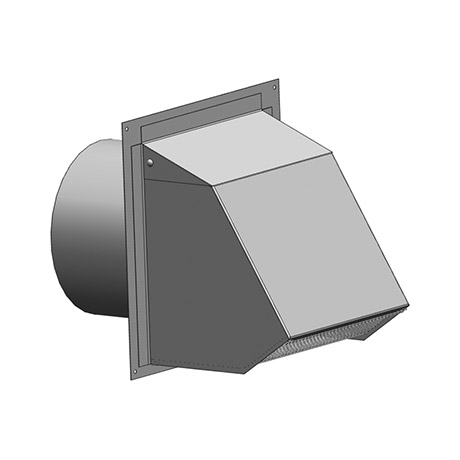

Wall Cap Vent
| Steel Materials | ASTM A653 0.0157", Min. 30ga, Fy=Min. 50 Ksi |
| Steel Mesh | Carbon Steel 0.2x0.2” |
| Baffle | Aluminum 0.0157"Thickness |
| Stainless Steel Tube | A276M-2017 201 6.89”x0.118” |
| Weldment | Riveting |
| Surface | Painting |
| Size | 6" |

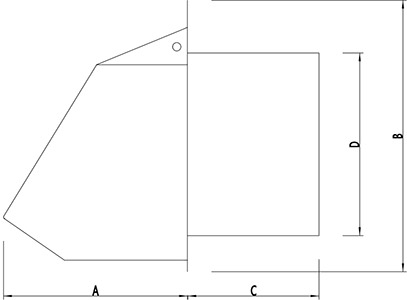

| Size(in) | A | B | C | D |
|---|---|---|---|---|
| 6 | 6 | 9 | 4-3/8 | 6 |
