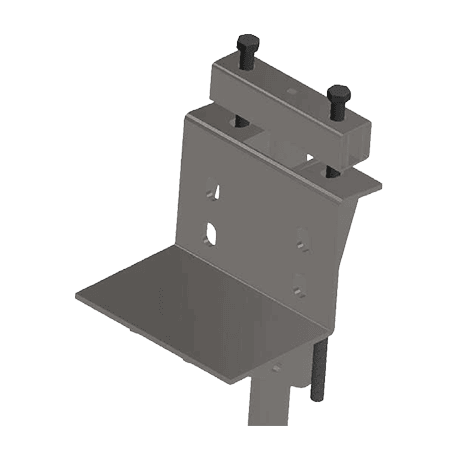

Repair Pile Bracket with T-Bar and Threaded Rod with Hardware
| Seat | ASTM A36 Hot Rolled Steel Plate |
| T-Bar | ASTM A500 Gr-B Square Round Pipe and ASTM A36 Hot Rolled Steel Plate |
| Threaded Rod | Full Length Threaded, Grade G8. Electro Zinc Plated as per ASTM B633 |
| Weldment | Fillet Weld to shaft 100% penetration as per AWS D1.1 |
| Surface | Hot Dipped Zinc Galvanization as per ASTM A153 |
| Note | OEM and Customized service is available |
| Size | 4" Low Profile and 8" |

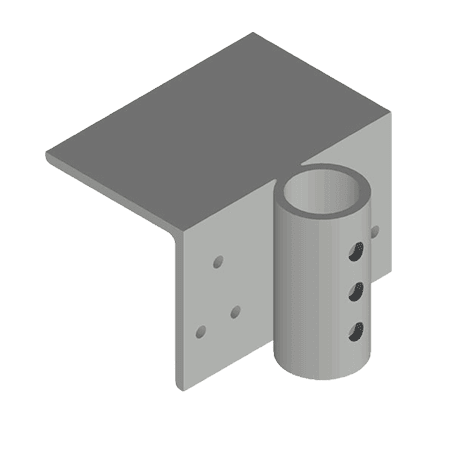

Angle Bracket
| Angled Plate | ASTM A36 Hot Rolled Steel Plate |
| Pipe | ASTM A500 Grade B Seamless Pipe |
| Bolt | Full Thread 14UNF Gr.10.9 |
| Weldment | Fillet Weld to plate 100% penetration as per AWS D1.1 |
| Surface | Hot Dipped Zinc Galvanization as per ASTM A153 |
| Note | OEM and Customized service is available |
| Size | 12 x .5" and 24 x .5" Steel Plate and 4.0 x .421" Pipe |
Slab Pier Bracket
| Steel Plate | ASTM A36 Hot Rolled Steel Plate |
| Push Pin Pipe | ASTM A500 Grade B |
| Threaded Rod | Full Length Threaded, Grade G8. Electro Zinc Plated as per ASTM B633 |
| Weldment | Fillet Weld to shaft 100% penetration as per AWS D1.1 |
| Surface | Hot Dipped Zinc Galvanization as per ASTM A153 |
| Note | OEM and Customized service is available |
| Size | Cap Plate : 4 x 7.5 x 3/4". Side Plate : 4 x 10 x .38" Central Plate : 7 x 10 x 3/4" , Thread Rod : 5/8"Ø x 14", 5/8" Hex Nut |
