Ground Screw Anchor

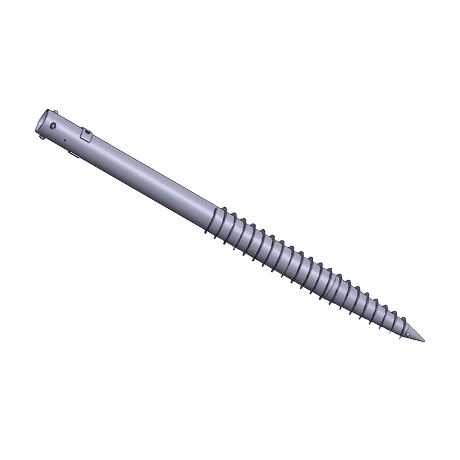

Ground Screw Anchor
Ground Screw Anchor
| Shaft | ASTM A500 Grade B ERW Pipe |
| Helix | ASTM A36 Hot Rolled Steel Plate 2-4mm Thick |
| Weldment | Continuous Fillet Weld to shaft 100% as per AWS D1.1 |
| Surface | Hot Dipped Zinc Galvanization as per ASTM A123 |
| Note | OEM and Customized service is available |
| Size | Pipe O.D : 48/60/76/89mm. W.T : 2-4mm. Length : 550 - 3000mm |

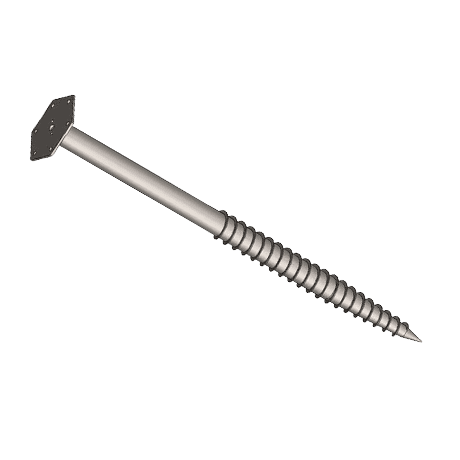

Ground Screw Anchor
| Shaft | ASTM A500 Grade B ERW Pipe |
| Helix | ASTM A36 Hot Rolled Steel Plate 2-4mm Thick |
| Weldment | Continuous Fillet Weld to shaft 100% as per AWS D1.1 |
| Surface | Hot Dipped Zinc Galvanization as per ASTM A123 |
| Note | OEM and Customized service is available |
| Size | Pipe = O.D : 76/89mm. W.T : 2-10mm. Length : 550 - 5000mm Flange = O.D : 160-300mm. Thickness 8-20mm |

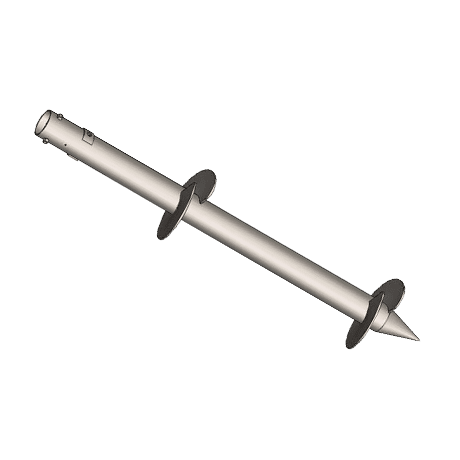

Ground Screw Anchor
| Shaft | ASTM A500 Grade B ERW Pipe |
| Helix | ASTM A36 Hot Rolled Steel Plate 4-6mm Thick |
| Weldment | Fillet Weld to shaft 100% penetration as per AWS D1.1 |
| Surface | Hot Dipped Zinc Galvanization as per ASTM A123 |
| Note | OEM and Customized service is available |
| Size | Pipe = O.D : 76/89mm. W.T : 4-10mm. Length : 1600 - 5000mm Helix = 100 - 150mm(4”-6”) |
