Tieback

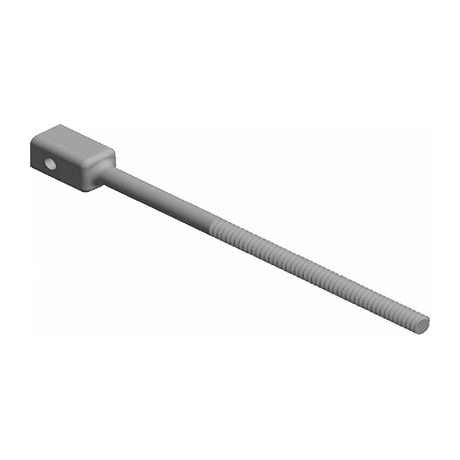

Tieback Anchor – Square Adapter Type
| Shaft | 40Cr Round Rod |
| Square Adapter | By Upsett Integral Forge |
| Thread | As per ISO R896 Grade 10.9 with 16" on 2' and 26" on 3' Length |
| Heavy Duty Nut | As per ASTM A563 Grade DH |
| Beveled Washer | AS per ASTM F436. ASTM A36 Hot Rolled Steel Plate |
| Surface | Hot Dipped Zinc Galvanization as per ASTM A153 |
| Note | OEM and Customized service is available |
| Size | 1.25" x 2' and 1.25" x 3' |

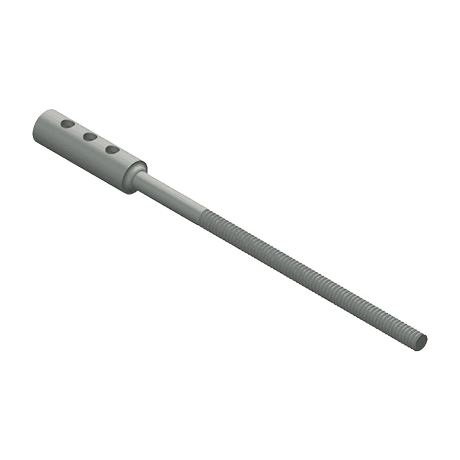

Tieback Anchor – Round Adapter Type
| Shaft | 40Cr Round Rod |
| Round Adapter | 40Cr Pipe |
| Weldment | Fillet Weld after Beveling to shaft 100% penetration as per AWS D1.1 |
| Thread | As per ISO R896 Grade 10.9 with 16" on 2' and 26" on 3' Length |
| Heavy Duty Nut | As per ASTM A563 Grade DH |
| Beveled Washer | AS per ASTM F436. ASTM A36 Hot Rolled Steel Plate |
| Surface | Hot Dipped Zinc Galvanization as per ASTM A153 |
| Note | OEM and Customized service is available |
| Size | 1.25" x 2' and 1.25" x 3' for 2 and 3 Holes Fitting |
